RA-DC2006
5/12V 1cfm 36Pa 29Db
Details

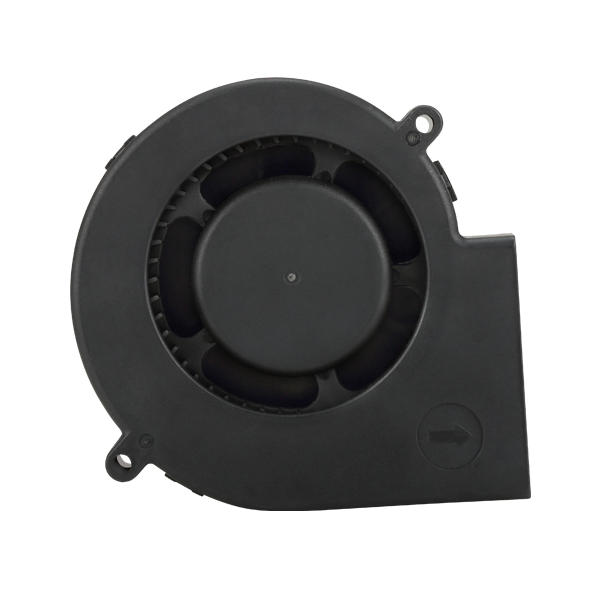

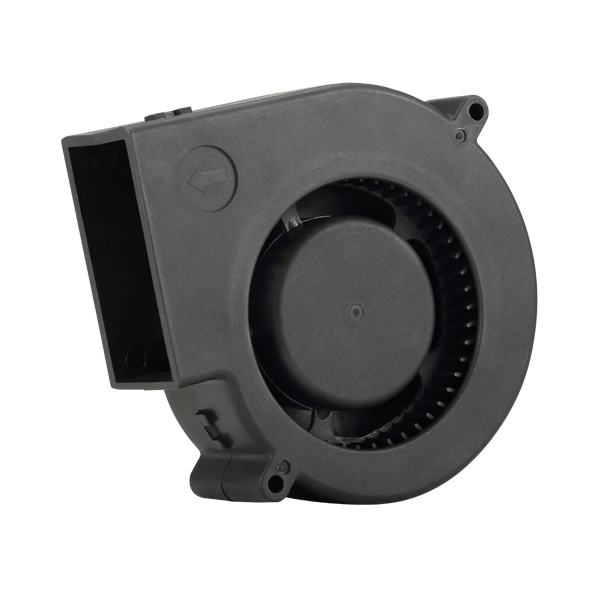

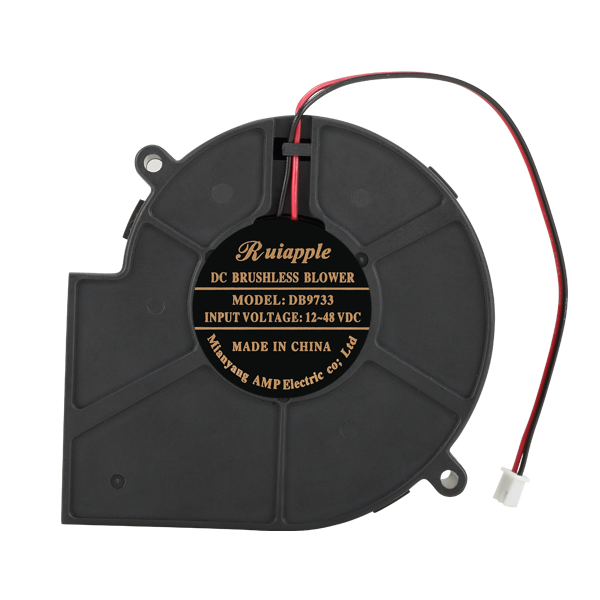

Model No. | RA-DB9733 |
Product Types | Blower Fan |
Product Types | Brushless DC Motor |

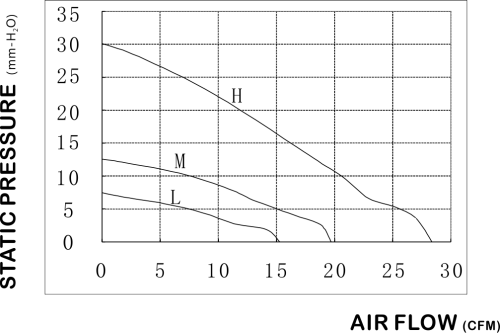

Model: | Voltage (V) | Current (A) | Power(W) | Speed(RPM) | Pressure (Pa) | Air Flow(m3/h) | Air Flow(CFM) | Noise (dB) |
12L | 12 | 0.17 | 2.04 | 2200 | 73 | 25.99 | 15.30 | 39 |
12M | 12 | 0.32 | 3.84 | 3000 | 123 | 33.47 | 19.70 | 47 |
12H | 12 | 0.80 | 9.60 | 4000 | 295 | 48.25 | 28.40 | 54 |
24L | 24 | 0.09 | 2.16 | 2200 | 73 | 25.99 | 15.30 | 39 |
24M | 24 | 0.16 | 3.84 | 3000 | 123 | 33.47 | 19.70 | 47 |
24H | 24 | 0.40 | 9.60 | 4000 | 295 | 48.25 | 28.40 | 54 |
Customized | √ | √ | √ | √ | √ | √ | √ | √ |
Bearing Type | Ball OR Sleeve |
Impeller and Fram | PBT PLASTIC |
Approvals | UL CE CCC |
Speed Control | PWM VSP Temperature Control Fix Speed with Pressure Intermittent |
Protected | Lock Auto-start Overload |
Out Signal | FG RD LD |
Insulation Class | B |
Insulation Resistance | 10MΩ/500V DC |
Dielectric Strength | 2Min/500V AC/5mA |
Insulation Class | F |
Relative Humidity | 20%-85% |
Working Temperature | -10℃/+60℃ |
Max Life | 8000 hours |
