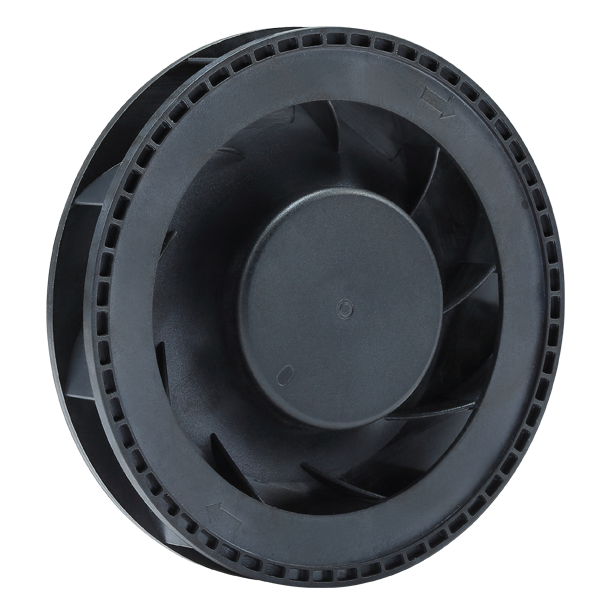

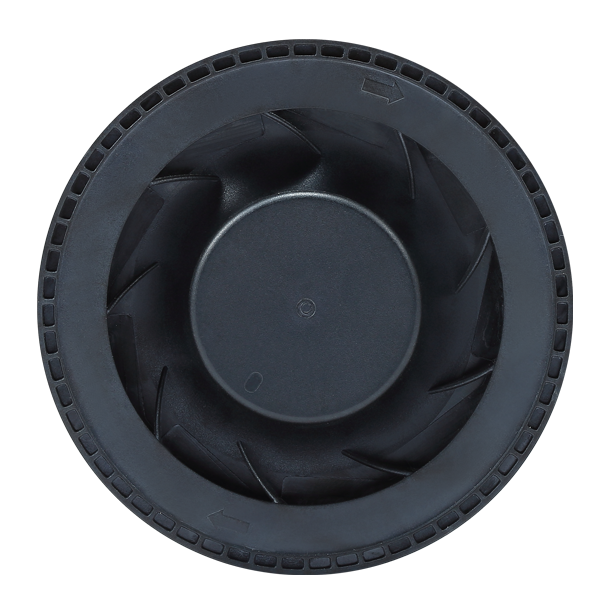

RA-DCC12025
Product description：
This is automotive grade product and already using in Auto industry. The most powerful, slient small DC fans with backward-curved blades and covers a diameter range of models from φ100mm to φ120mm, height 25mm. With maximum air volume up to 113 m3/h and maximum static pressure up to 196 Pa with low noise, no extra electromagnetic noise. High air flow and pressure excellent for air purifier, car air conditioner and any application need quiet. DC motors come with a variety of control solutions and protection functions.It is easier to control the fan and flexibly meet customers’ control requirements such as Pwm, Vlotage.

Data Sheet
Detailed Parameters
Model No. & Category

Model No.
RA-DCC12025

Product Types
Centrifugal Fan

Product Types
Brushless DC Motor


Basic Parameters

Model:
Voltage  (V)
Current  (A)
Power（W）
Speed（RPM)
Pressure (Pa)
Air Flow（m3/h）
Air Flow（CFM）
Noise  (dB）

12L
12
0.22
2.64
2000
76
84.10
49.5
43

12M
12
0.35
4.20
2500
103
102.79
60.5
50

12H
12
0.60
7.20
3000
156
113.83
67.0
54

24L
24
0.13
3.12
2000
76
84.10
49.5
43

24M
24
0.18
4.20
2500
103
102.79
60.5
50

24H
24
0.30
7.20
3000
156
113.83
67.0
54

Customized
√
√
√
√
√
√
√
√


Product Information

Bearing Type
Ball OR Sleeve

Impeller and Fram
PBT PLASTIC

Approvals
UL CE CCC

Speed Control
PWM VSP Temperature Control Fix Speed with Pressure Intermittent

Protected
Lock Auto-start Overload

Out Signal
FG RD LD

Insulation Class
B

Insulation Resistance
10MΩ/500V DC

Dielectric Strength
2Min/500V AC/5mA

Insulation Class
F

Relative Humidity
20%-85%

Working Temperature
-10℃/+60℃

Max Life
8000 hours
