Details

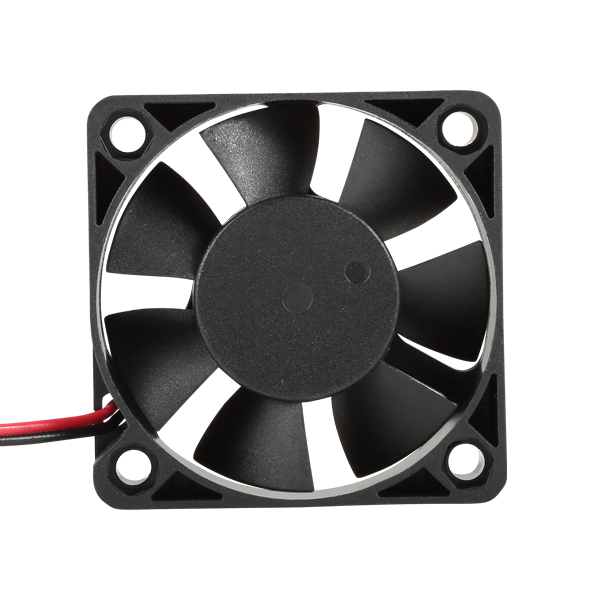

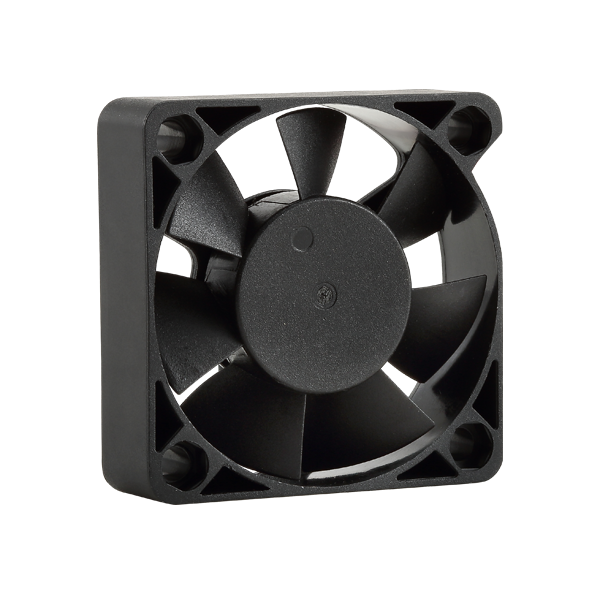

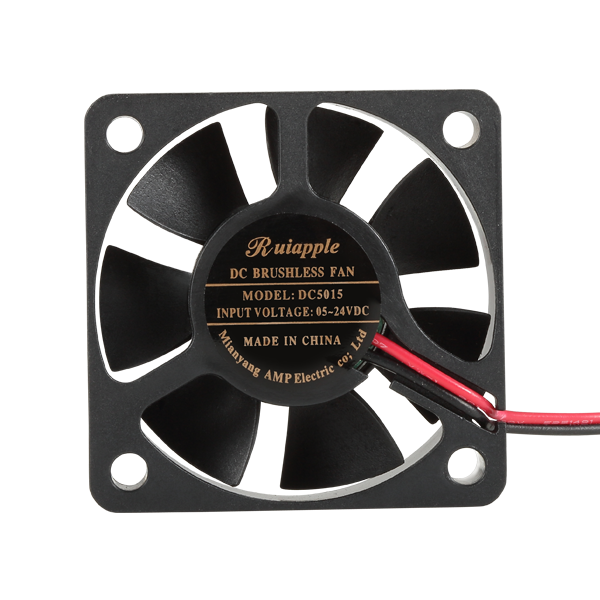

Model No. | RA-DC5015 |
Product Types | Axial Fan |
Product Types | Brushless DC Motor |

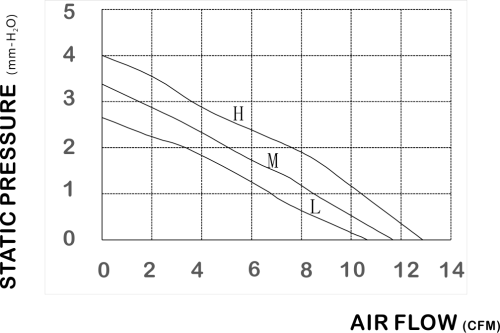

Model: | Voltage (V) | Current (A) | Power(W) | Speed(RPM) | Pressure (Pa) | Air Flow(m3/h) | Air Flow(CFM) | Noise (dB) |
12L | 12 | 0.1 | 1.2 | 4500 | 26 | 18 | 11 | 31 |
12M | 12 | 0.12 | 1.4 | 5000 | 33 | 20 | 12 | 33 |
12H | 12 | 0.15 | 1.8 | 5500 | 39 | 22 | 13 | 36 |
24L | 24 | 0.05 | 1.2 | 4500 | 26 | 18 | 11 | 31 |
24M | 24 | 0.06 | 1.4 | 5000 | 33 | 20 | 12 | 33 |
24H | 24 | 0.07 | 1.8 | 5500 | 39 | 22 | 13 | 36 |
Customized | √ | √ | √ | √ | √ | √ | √ | √ |
Bearing Type | Ball OR Sleeve |
Impeller and Fram | PBT PLASTIC |
Approvals | UL CE CCC |
Speed Control | PWM VSP Temperature Control Fix Speed with Pressure Intermittent |
Protected | Lock Auto-start Overload |
Out Signal | FG RD LD |
Insulation Class | B |
Insulation Resistance | 10MΩ/500V DC |
Dielectric Strength | 2Min/500V AC/5mA |
Insulation Class | F |
Relative Humidity | 20%-85% |
Working Temperature | -10℃/+60℃ |
Max Life | 80000 hours |
