RA-DC17251
12/24/48V 255cfm 210Pa 63Db
Details

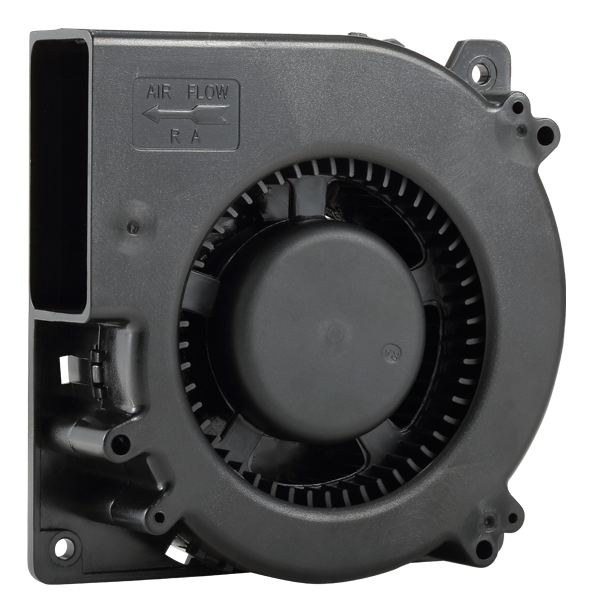

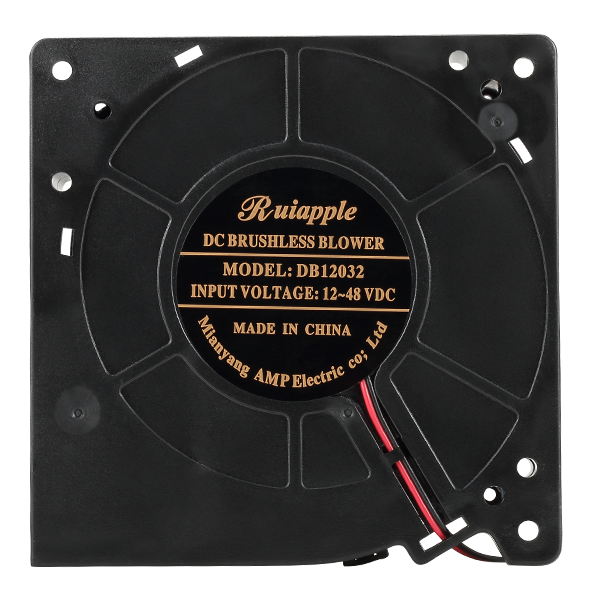

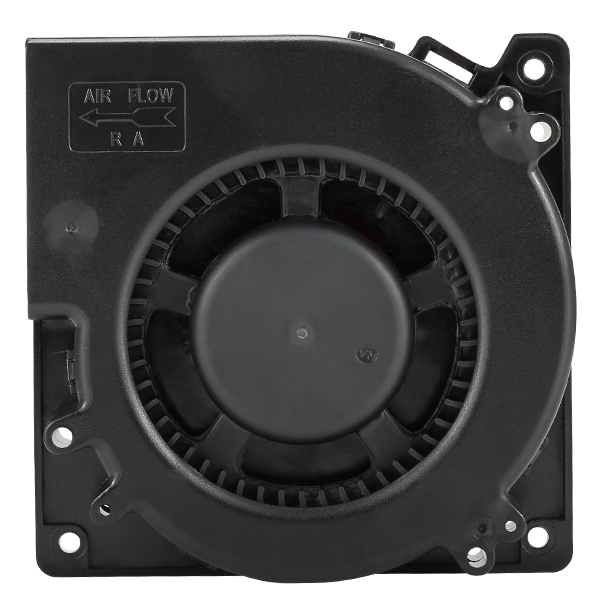

Model No. | RA-DB12032 |
Product Types | Blower Fan |
Product Types | Brushless DC Motor |

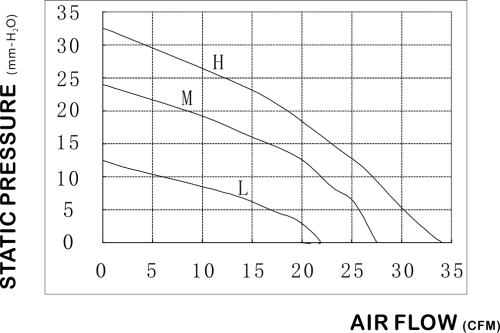

Model: | Voltage (V) | Current (A) | Power(W) | Speed(RPM) | Pressure (Pa) | Air Flow(m3/h) | Air Flow(CFM) | Noise (dB) |
12L | 12 | 0.31 | 3.72 | 2000 | 123 | 33.13 | 19.50 | 43 |
12M | 12 | 0.52 | 6.24 | 2500 | 235 | 46.72 | 27.50 | 48 |
12H | 12 | 0.78 | 9.36 | 3000 | 319 | 57.77 | 34.00 | 52 |
24L | 24 | 0.18 | 4.32 | 2000 | 123 | 33.13 | 19.50 | 43 |
24M | 24 | 0.30 | 7.20 | 2500 | 235 | 46.72 | 27.50 | 48 |
24H | 24 | 0.45 | 10.80 | 3000 | 319 | 57.77 | 34.00 | 52 |
Customized | √ | √ | √ | √ | √ | √ | √ | √ |
Bearing Type | Ball OR Sleeve |
Impeller and Fram | PBT PLASTIC |
Approvals | UL CE CCC |
Speed Control | PWM VSP Temperature Control Fix Speed with Pressure Intermittent |
Protected | Lock Auto-start Overload |
Out Signal | FG RD LD |
Insulation Class | B |
Insulation Resistance | 10MΩ/500V DC |
Dielectric Strength | 2Min/500V AC/5mA |
Insulation Class | F |
Relative Humidity | 20%-85% |
Working Temperature | -10℃/+60℃ |
Max Life | 8000 hours |
