RA-DCMT47.5mm
Product description：

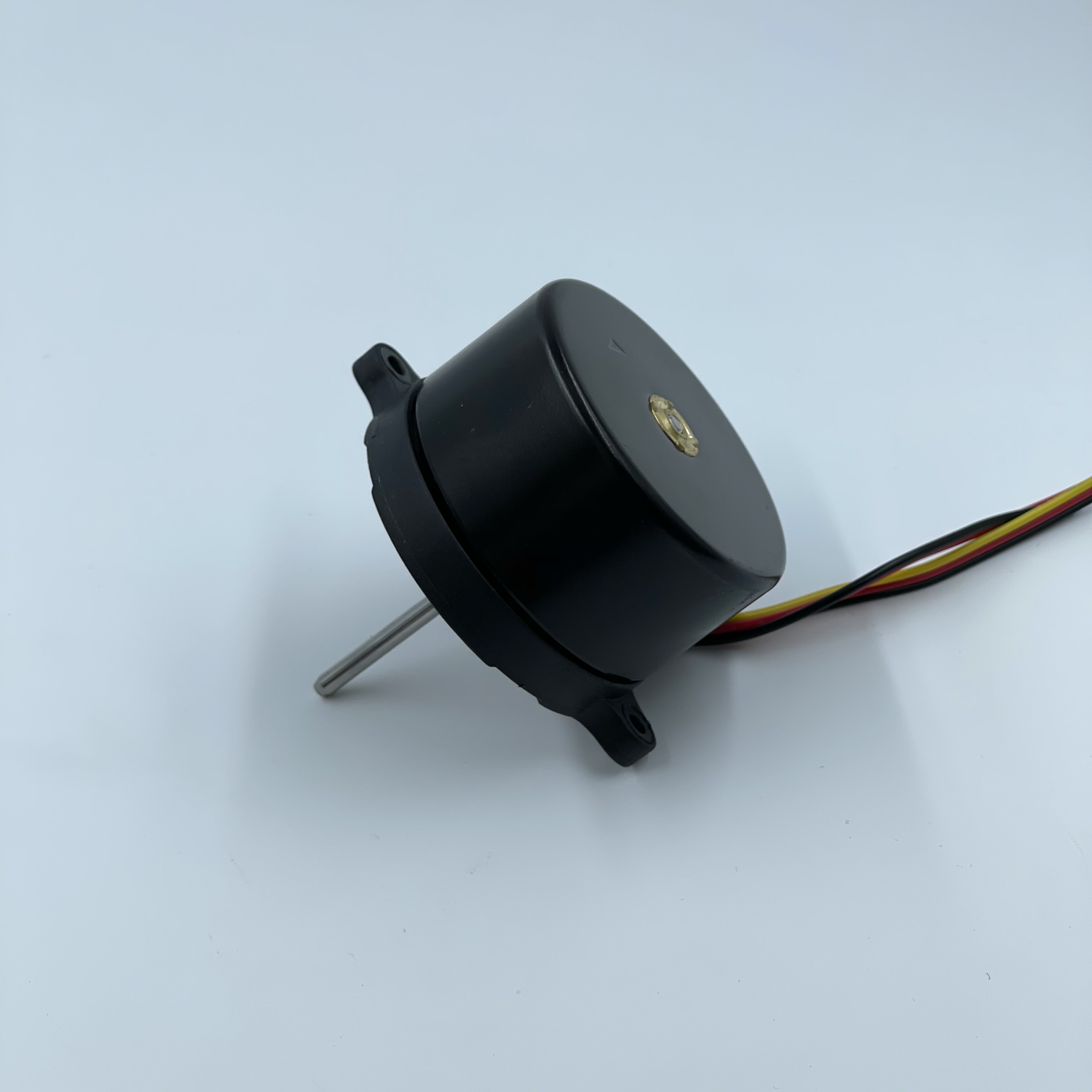

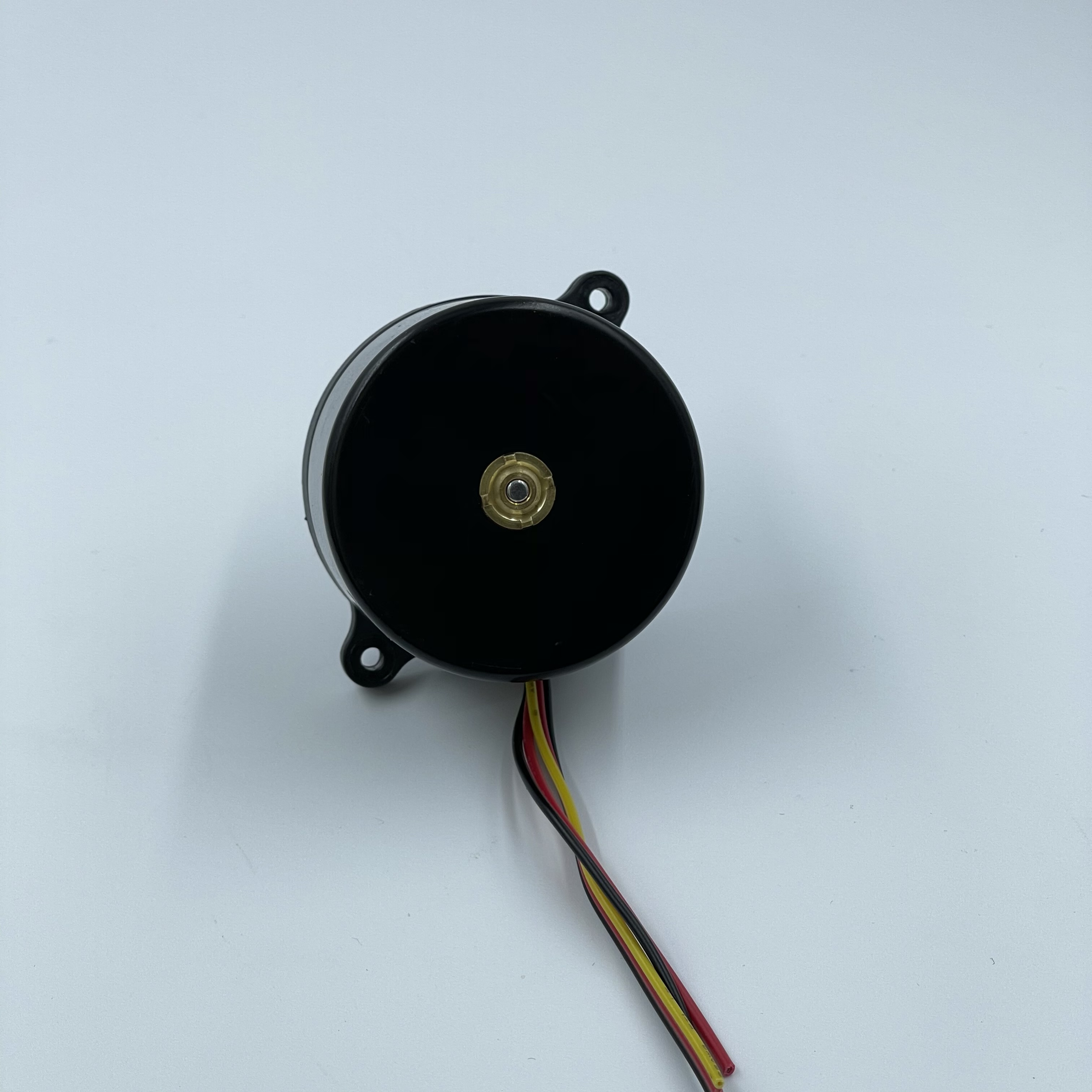

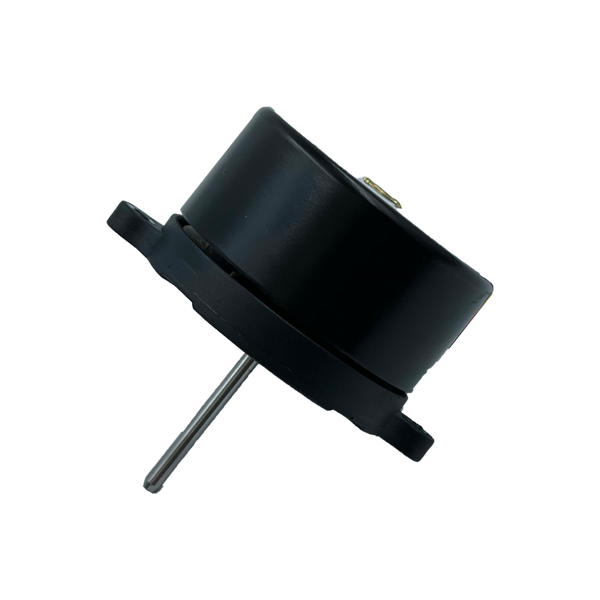

Ruiapple DC Cross Motors with 12 multi-phase less than 5mg Excellent balanced High speed Low Noise High load ability EMC passed. Ruiapple offer several models of DC cross flow fans Motor All motor parts are designed and manufactured by RUEAPPLE with unique features in each of the models. Dc Cross fan motor Diameter range is from 24.5mm to 50mm Fit impellers range from 25mm to 70mm in diameter and 76mm to 360 mm in length depending upon the model. The 180° Air Flow Inlet brush models are available in impeller diameters of 32mm and lengths ranging in size from 105mm to 290mm. Available in potential difference of 12 24 and 48 volts. Sample avalible Development Customized Provide whole Cross Fam solution.

Data Sheet
Detailed Parameters
Model No. & Category

Model No.
RA-DCMT 47.5mm

Product Types
Cross Fan Motor

Product Types
DC Motor


Basic Parameters

Model:
Voltage  (V)
Current  (A)
Power（W）
Speed（RPM)
Pressure (Pa)
Air Flow（m3/h）
Air Flow（CFM）
Noise  (dB）

12L
12
0.09
1.1
2000
17
65
38
27

12M
12
0.14
1.7
2500
31
88
52
32

12H
12
0.24
2.9
3000
42
99
58
37

24L
24
0.07
1.68
2000
17
65
38
27

24M
24
0.1
2.4
2500
31
88
52
32

24H
24
0.18
4.3
3000
42
99
58
37

Customized
√
√
√
√
√
√
√
√


Product Information

Bearing Type
Ball OR Sleeve

Impeller and Fram
PBT PLASTIC

Approvals
UL CE CCC

Speed Control
PWM VSP Temperature Control Fix Speed with Pressure Intermittent

Protected
Lock Auto-start Overload

Out Signal
FG RD LD

Insulation Class
B

Insulation Resistance
10MΩ/500V DC

Dielectric Strength
2Min/500V AC/5mA

Insulation Class
F

Relative Humidity
20%-85%

Working Temperature
-10℃/+60℃

Max Life
80000 hours
