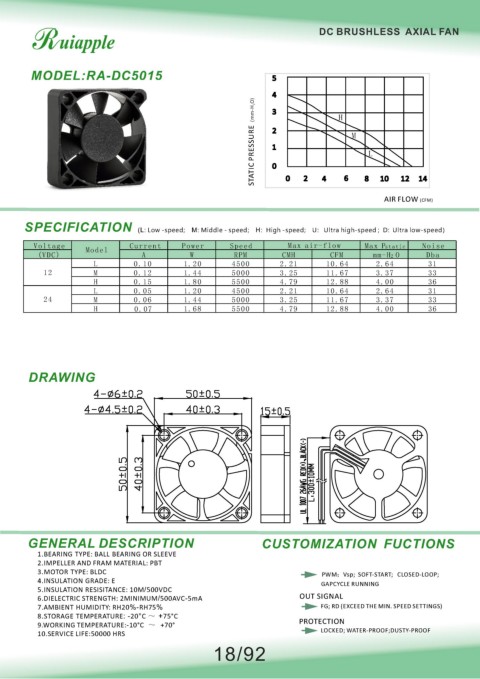

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC5015 5
4
O) 3 H
STATIC PRESSURE（mm-H 2 1 M L
2
0
6
0
2
4
12
14
8
10
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H2 O Dba
L 0.10 1.20 4500 2.21 10.64 2.64 31
12 M 0.12 1.44 5000 3.25 11.67 3.37 33
H 0.15 1.80 5500 4.79 12.88 4.00 36
L 0.05 1.20 4500 2.21 10.64 2.64 31
24 M 0.06 1.44 5000 3.25 11.67 3.37 33
H 0.07 1.68 5500 4.79 12.88 4.00 36
DRAWING
、 、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
