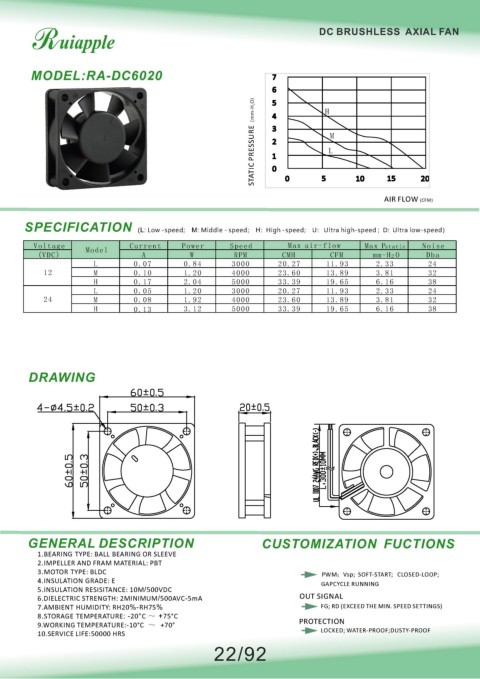

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC6020 7
6
O) 5 H
STATIC PRESSURE（mm-H 2 1 L M
4
3
2
0
0
10
20
15
5
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 0.07 0.84 3000 20.27 11.93 2.33 24
12 M 0.10 1.20 4000 23.60 13.89 3.81 32
H 0.17 2.04 5000 33.39 19.65 6.16 38
L 0.05 1.20 3000 20.27 11.93 2.33 24
24 M 0.08 1.92 4000 23.60 13.89 3.81 32
H 0.13 3.12 5000 33.39 19.65 6.16 38
DRAWING
、 、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
