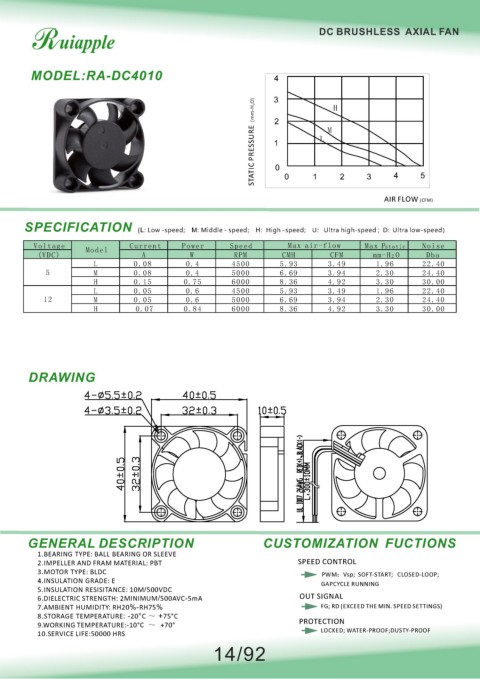

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC4010 4
O) 3 H
STATIC PRESSURE（mm-H 2 1 L M
2
0
5
4
1
0
3
2
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 0.08 0.4 4500 5.93 3.49 1.96 22.40
5 M 0.08 0.4 5000 6.69 3.94 2.30 24.40
H 0.15 0.75 6000 8.36 4.92 3.30 30.00
L 0.05 0.6 4500 5.93 3.49 1.96 22.40
12 M 0.05 0.6 5000 6.69 3.94 2.30 24.40
H 0.07 0.84 6000 8.36 4.92 3.30 30.00
DRAWING
風扇外觀尺寸圖
、 、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
