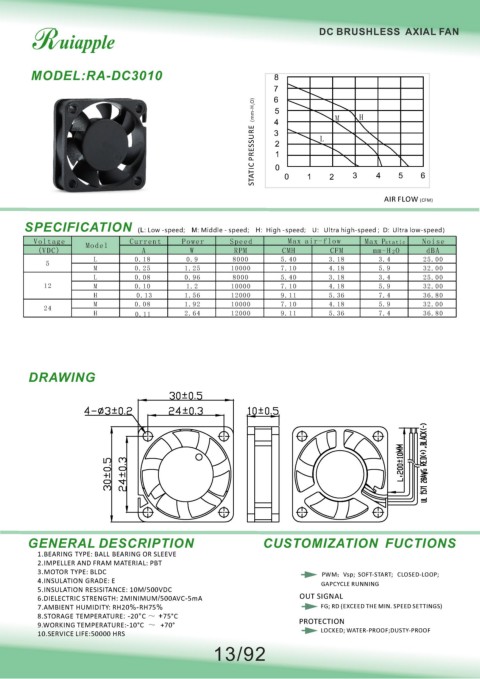

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC3010 8
7
O) 6 5 M H
STATIC PRESSURE（mm-H 2 3 2 L
4
1
0
3
5
6
4
0
2
1
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O dBA
L 0.18 0.9 8000 5.40 3.18 3.4 25.00
5
M 0.25 1.25 10000 7.10 4.18 5.9 32.00
L 0.08 0.96 8000 5.40 3.18 3.4 25.00
12 M 0.10 1.2 10000 7.10 4.18 5.9 32.00
H 0.13 1.56 12000 9.11 5.36 7.4 36.80
M 0.08 1.92 10000 7.10 4.18 5.9 32.00
24
H 0.11 2.64 12000 9.11 5.36 7.4 36.80
DRAWING
風扇外觀尺寸圖
,
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
