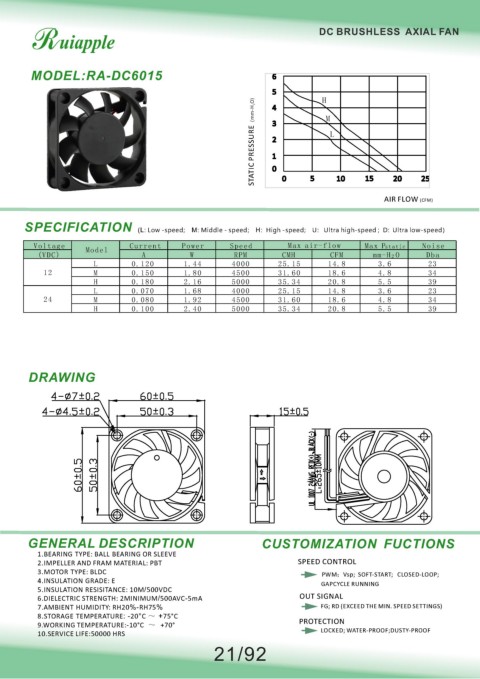

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC6015 6
5
O) 4 H M
STATIC PRESSURE(mm-H 2 1 L
3
2
0
5
0
15
25
20
10
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed; M: Middle - speed; H: High -speed; U:Ultra high-speed ; D: Ultra low-speed)
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 0.120 1.44 4000 25.15 14.8 3.6 23
12 M 0.150 1.80 4500 31.60 18.6 4.8 34
H 0.180 2.16 5000 35.34 20.8 5.5 39
L 0.070 1.68 4000 25.15 14.8 3.6 23
24 M 0.080 1.92 4500 31.60 18.6 4.8 34
H 0.100 2.40 5000 35.34 20.8 5.5 39
DRAWING
、 、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT SPEED CONTROL
3.MOTOR TYPE: BLDC PWM;Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ~ +75°C
9.WORKING TEMPERATURE:-10°C ~ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
