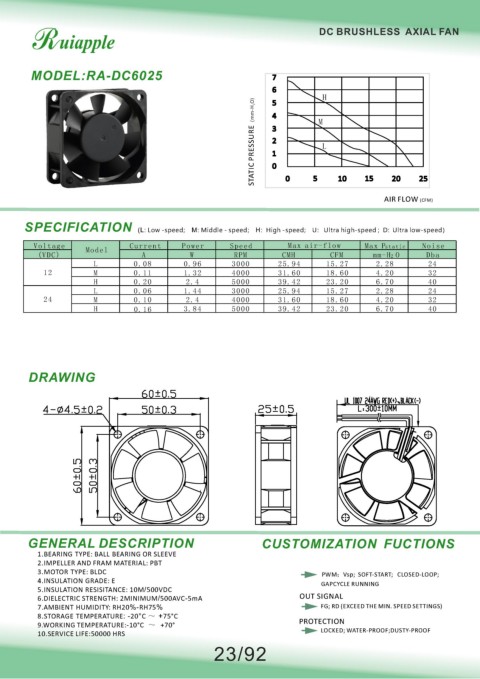

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC6025 7
6
H
O) 5 M
STATIC PRESSURE（mm-H 2 1 L
4
3
2
0
0
5
20
25
10
15
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H2 O Dba
L 0.08 0.96 3000 25.94 15.27 2.28 24
12 M 0.11 1.32 4000 31.60 18.60 4.20 32
H 0.20 2.4 5000 39.42 23.20 6.70 40
L 0.06 1.44 3000 25.94 15.27 2.28 24
24 M 0.10 2.4 4000 31.60 18.60 4.20 32
H 0.16 3.84 5000 39.42 23.20 6.70 40
DRAWING
、
、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
