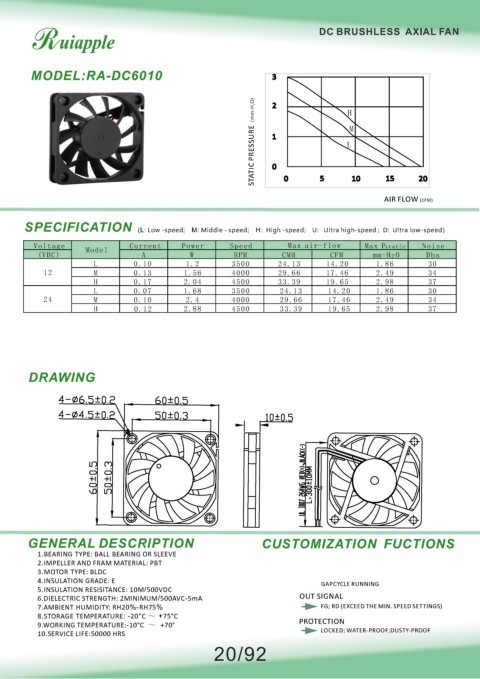

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC6010 3
O) 2 H
STATIC PRESSURE（mm-H 2 1 L M
0
5
0
10
15
20
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 0.10 1.2 3500 24.13 14.20 1.86 30
12 M 0.13 1.56 4000 29.66 17.46 2.49 34
H 0.17 2.04 4500 33.39 19.65 2.98 37
L 0.07 1.68 3500 24.13 14.20 1.86 30
24 M 0.10 2.4 4000 29.66 17.46 2.49 34
H 0.12 2.88 4500 33.39 19.65 2.98 37
DRAWING
、 、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT
3.MOTOR TYPE: BLDC
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
