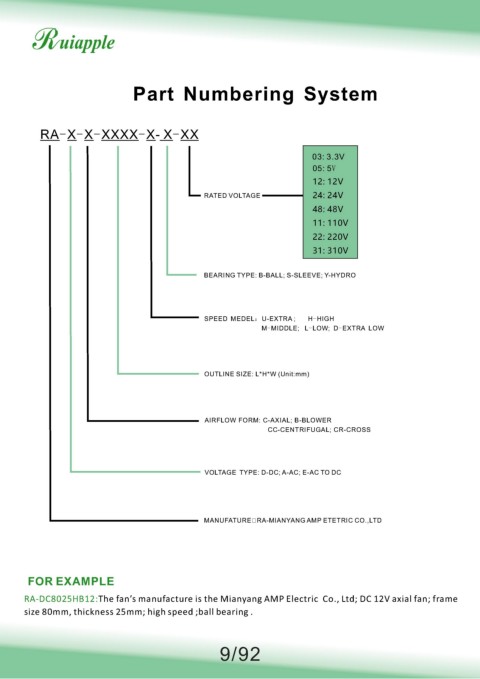

Part Numbering System

RA-X-X-XXXX-X- X-XX

03: 3.3V
05: 5V

12: 12V
RATED VOLTAGE 24: 24V
48: 48V
11: 110V
22: 220V
31: 310V

BEARING TYPE: B-BALL; S-SLEEVE; Y-HYDRO

SPEED MEDEL：U-EXTRA ; H-HIGH
M-MIDDLE; L-LOW; D-EXTRA LOW

OUTLINE SIZE: L*H*W (Unit:mm)

AIRFLOW FORM: C-AXIAL; B-BLOWER
CC-CENTRIFUGAL; CR-CROSS

VOLTAGE TYPE: D-DC; A-AC; E-AC TO DC

MANUFATURE RA-MIANYANG AMP ETETRIC CO.,LTD

FOR EXAMPLE
RA-DC8025HB12:The fan’s manufacture is the Mianyang AMP Electric Co., Ltd; DC 12V axial fan; frame
size 80mm, thickness 25mm; high speed ;ball bearing .
