P. 10

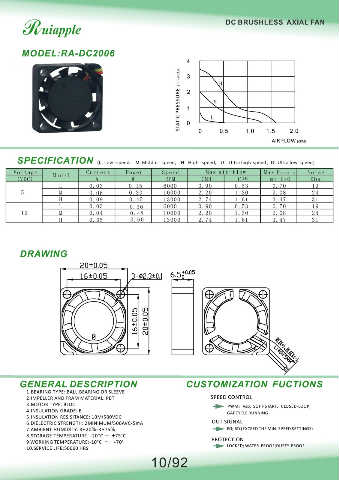

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC2006
4
O) 3 H
STATIC PRESSURE（mm-H 2 2 L M
1
0
1.5
1.0
2.0
0
0.5
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 0.03 0.15 6000 0.90 0.53 0.70 19
5 M 0.06 0.30 10000 2.20 1.30 2.08 24
H 0.09 0.45 13000 2.74 1.61 3.47 31
L 0.03 0.36 6000 0.90 0.53 0.70 19
12 M 0.04 0.48 10000 2.20 1.30 2.08 24
H 0.05 0.60 13000 2.74 1.61 3.47 31
DRAWING
風扇外觀尺寸圖
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
10/92
