P. 12

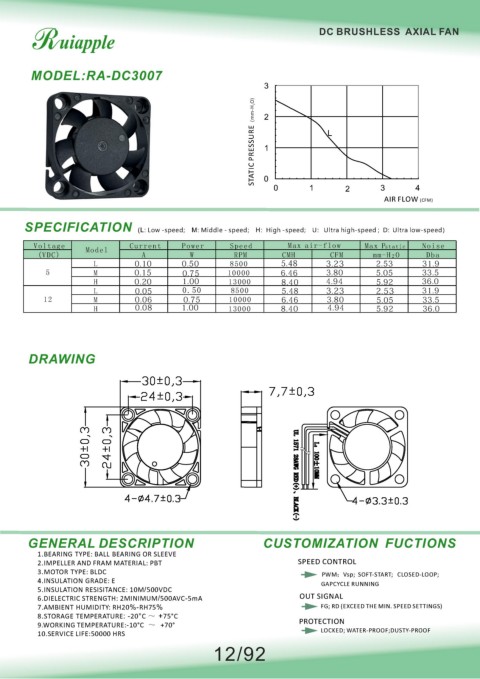

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC3007
3
O) 2
STATIC PRESSURE（mm-H 2 1 L
0
0 1 2 3 4
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 0.10 0.50 8500 5.48 3.23 2.53 31.9
5 M 0.15 0.75 10000 6.46 3.80 5.05 33.5
H 0.20 1.00 13000 8.40 4.94 5.92 36.0
L 0.05 0.50 8500 5.48 3.23 2.53 31.9
12 M 0.06 0.75 10000 6.46 3.80 5.05 33.5
H 0.08 1.00 13000 8.40 4.94 5.92 36.0
DRAWING
風扇外觀尺寸圖 UL L：100±10MM
1571
28AWG
RED(+)、BLACK(-)
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
12/92
