P. 61

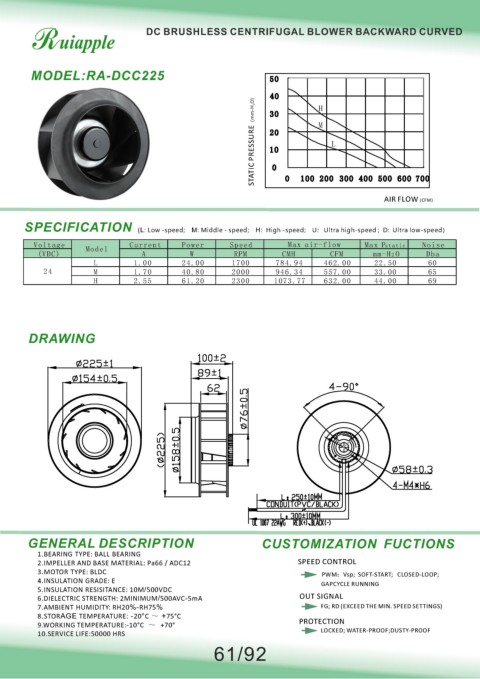

DC BRUSHLESS CENTRIFUGAL BLOWER BACKWARD CURVEDC BRUSHLESS CENTRIFUGAL BLOWER BACKWARD CURVED
D
MODEL:RA-DCC225 50
40
O) 30 H
STATIC PRESSURE（mm-H 2 10 M L
20
0
100 200 300 400 500 600 700
0
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 1.00 24.00 1700 784.94 462.00 22.50 60
24 M 1.70 40.80 2000 946.34 557.00 33.00 65
H 2.55 61.20 2300 1073.77 632.00 44.00 69
DRAWING
：
：
、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING
2.IMPELLER AND BASE MATERIAL: Pa66 / ADC12 SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
