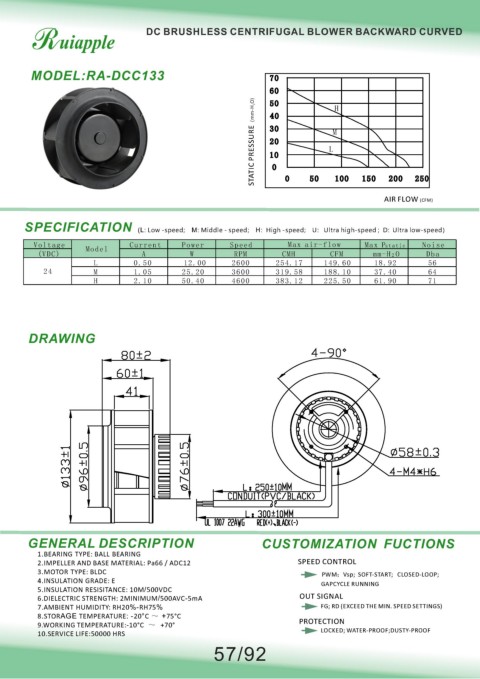

DC BRUSHLESS CENTRIFUGAL BLOWER BACKWARD CURVED
MODEL:RA-DCC133 70
60
O) 50 H
STATIC PRESSURE（mm-H 2 10 L M
40
30
20
0
150
200
250
50
0
100
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 0.50 12.00 2600 254.17 149.60 18.92 56
24 M 1.05 25.20 3600 319.58 188.10 37.40 64
H 2.10 50.40 4600 383.12 225.50 61.90 71
DRAWING
：
：
、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING
2.IMPELLER AND BASE MATERIAL: Pa66 / ADC12 SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
