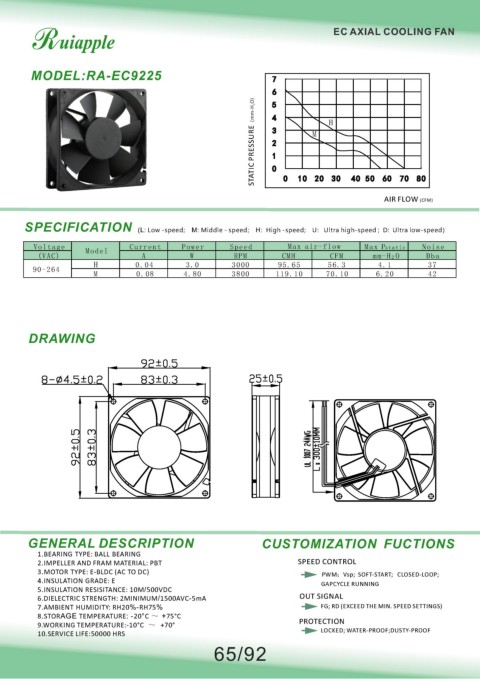

EC AXIAL COOLING FAN
MODEL:RA-EC9225 7
6
O) 5 H
STATIC PRESSURE（mm-H 2 3 M
4
2
1
0
10 20 30
0
80
70
40 50
60
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VAC) A W RPM CMH CFM mm-H 2 O Dba
H 0.04 3.0 3000 95.65 56.3 4.1 37
90-264
M 0.08 4.80 3800 119.10 70.10 6.20 42
DRAWING
：
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING
2.IMPELLER AND FRAM MATERIAL: PBT SPEED CONTROL
3.MOTOR TYPE: E-BLDC (AC TO DC) PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/1500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
