P. 44

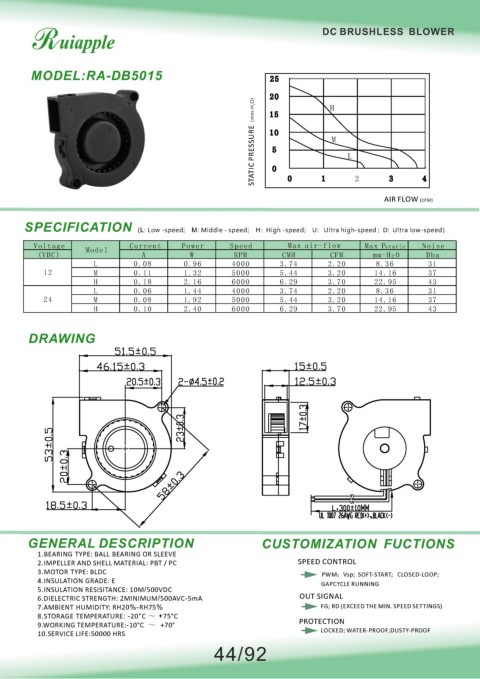

DC BRUSHLESS BLOWER
MODEL:RA-DB5015 25
20
O) 15 H
STATIC PRESSURE（mm-H 2 10 M L
5
0
1
0
3
2
4
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 0.08 0.96 4000 3.74 2.20 8.36 31
12 M 0.11 1.32 5000 5.44 3.20 14.16 37
H 0.18 2.16 6000 6.29 3.70 22.95 43
L 0.06 1.44 4000 3.74 2.20 8.36 31
24 M 0.08 1.92 5000 5.44 3.20 14.16 37
H 0.10 2.40 6000 6.29 3.70 22.95 43
DRAWING
、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND SHELL MATERIAL: PBT / PC SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
44/92
