P. 43

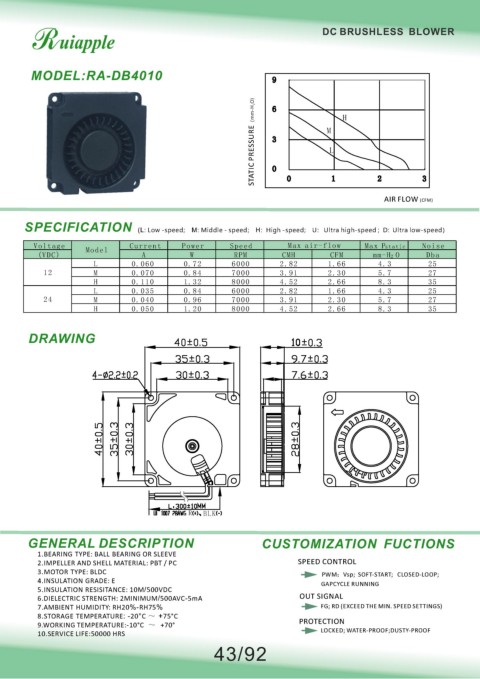

DC BRUSHLESS BLOWER
MODEL:RA-DB4010 9
O) 6 H
STATIC PRESSURE（mm-H 2 3 M L
0
1
0
3
2
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H2 O Dba
L 0.060 0.72 6000 2.82 1.66 4.3 25
12 M 0.070 0.84 7000 3.91 2.30 5.7 27
H 0.110 1.32 8000 4.52 2.66 8.3 35
L 0.035 0.84 6000 2.82 1.66 4.3 25
24 M 0.040 0.96 7000 3.91 2.30 5.7 27
H 0.050 1.20 8000 4.52 2.66 8.3 35
DRAWING
R 、 BLK
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND SHELL MATERIAL: PBT / PC SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
43/92
