P. 36

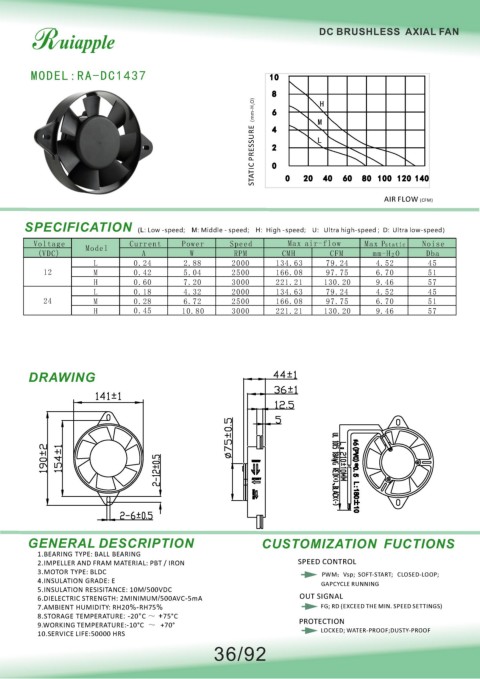

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC1437 10
8
O) 6 M H
STATIC PRESSURE（mm-H 2 4 L
2
0
20
0
80 100 120 140
40
60
AIR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 0.24 2.88 2000 134.63 79.24 4.52 45
12 M 0.42 5.04 2500 166.08 97.75 6.70 51
H 0.60 7.20 3000 221.21 130.20 9.46 57
L 0.18 4.32 2000 134.63 79.24 4.52 45
24 M 0.28 6.72 2500 166.08 97.75 6.70 51
H 0.45 10.80 3000 221.21 130.20 9.46 57
DRAWING
風(fēng)扇外觀尺寸圖 JIANMOR ： 6(PVC)*0.5
、
L:180±10
GENERAL DESCRIPTION ROTATION AIRFLOW CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING
2.IMPELLER AND FRAM MATERIAL: PBT / IRON SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
