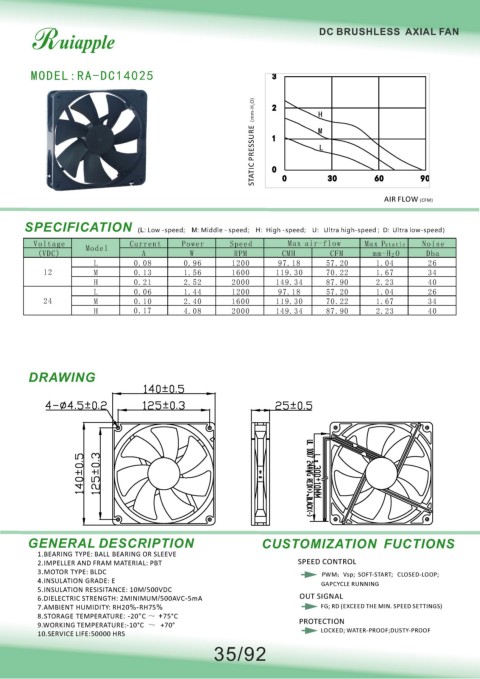

DC BRUSHLESS AXIAL FAN
MODEL:RA-DC14025 3
O) 2 H
STATIC PRESSURE（mm-H 2 1 0 M L
30
0
60
A 90
AIR FLOW (CFM)IR FLOW (CFM)
SPECIFICATION (L: Low -speed； M: Middle - speed； H: High -speed； U：Ultra high-speed ; D: Ultra low-speed）
Voltage Model Current Power Speed Max air-flow Max Pstatic Noise
(VDC) A W RPM CMH CFM mm-H 2 O Dba
L 0.08 0.96 1200 97.18 57.20 1.04 26
12 M 0.13 1.56 1600 119.30 70.22 1.67 34
H 0.21 2.52 2000 149.34 87.90 2.23 40
L 0.06 1.44 1200 97.18 57.20 1.04 26
24 M 0.10 2.40 1600 119.30 70.22 1.67 34
H 0.17 4.08 2000 149.34 87.90 2.23 40
DRAWING
：
、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING OR SLEEVE
2.IMPELLER AND FRAM MATERIAL: PBT SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: E
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
