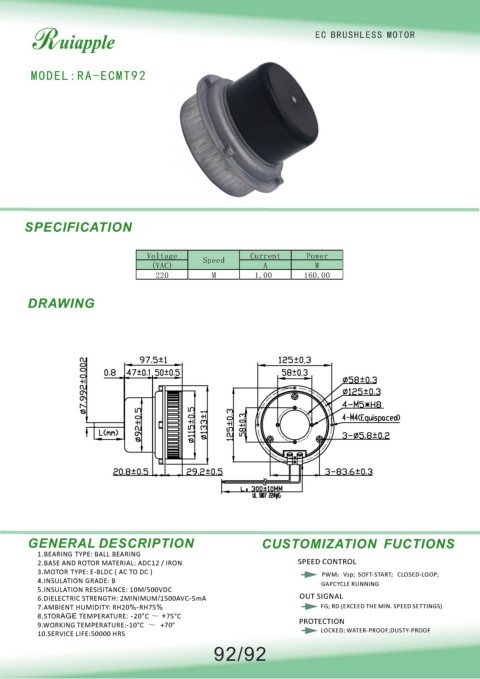

P. 92
EC BRUSHLESS MOTOR
MODEL:RA-ECMT92
SPECIFICATION
Voltage Speed Current Power
(VAC) A W
220 M 1.00 160.00
DRAWING
風扇外觀尺寸圖
：
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING
2.BASE AND ROTOR MATERIAL: ADC12 / IRON SPEED CONTROL
3.MOTOR TYPE: E-BLDC ( AC TO DC ) PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: B
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/1500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
92/92
