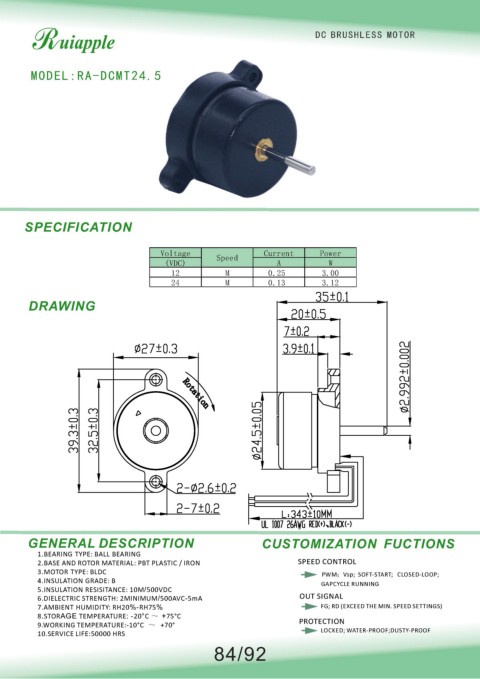

Page 84 - Catalogue
P. 84
DC BRUSHLESS MOTOR
MODEL:RA-DCMT24.5
SPECIFICATION
Voltage Speed Current Power
(VDC) A W
12 M 0.25 3.00
24 M 0.13 3.12
DRAWING
風(fēng)扇外觀尺寸圖 Rotation
、
GENERAL DESCRIPTION CUSTOMIZATION FUCTIONS
1.BEARING TYPE: BALL BEARING
2.BASE AND ROTOR MATERIAL: PBT PLASTIC / IRON SPEED CONTROL
3.MOTOR TYPE: BLDC PWM；Vsp; SOFT-START; CLOSED-LOOP;
4.INSULATION GRADE: B
GAPCYCLE RUNNING
5.INSULATION RESISITANCE: 10M/500VDC
6.DIELECTRIC STRENGTH: 2MINIMUM/500AVC-5mA OUT SIGNAL
7.AMBIENT HUMIDITY: RH20%-RH75% FG; RD (EXCEED THE MIN. SPEED SETTINGS)
8.STORAGE TEMPERATURE: -20°C ～ +75°C
9.WORKING TEMPERATURE:-10°C ～ +70° PROTECTION
10.SERVICE LIFE:50000 HRS LOCKED; WATER-PROOF;DUSTY-PROOF
